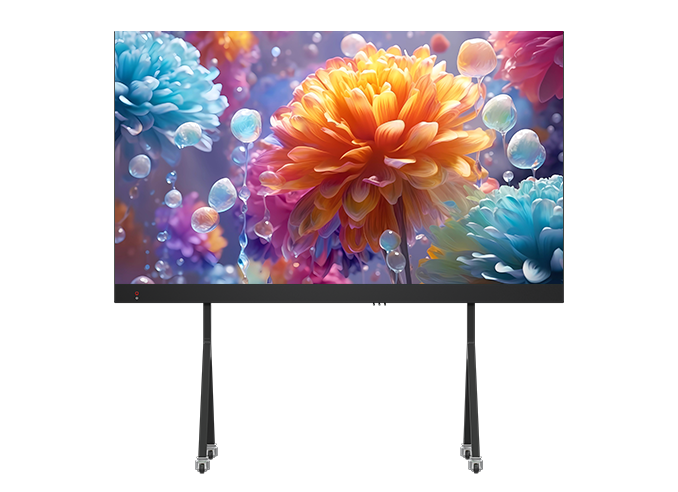

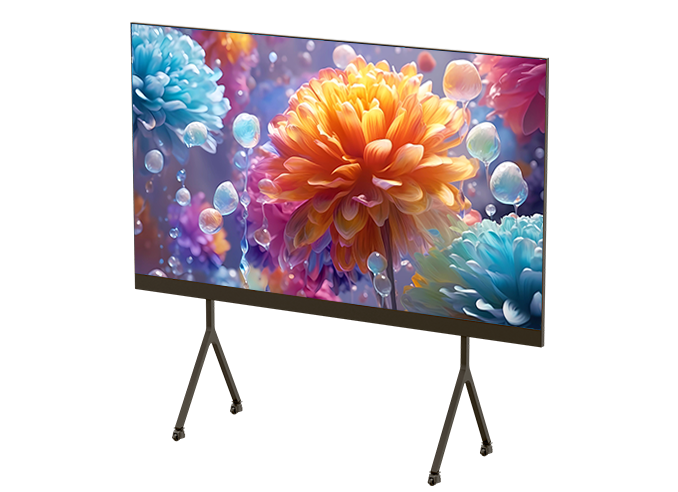

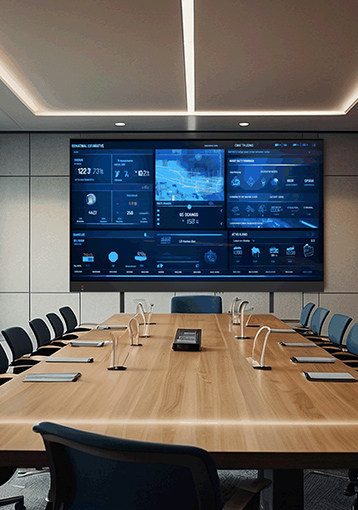

Die EVA PAD-Serie LED-Anzeige ist ein All-in-One-Smart-LED-Display, das von LP DISPLAY für den Indoor-Konferenzmarkt entwickelt wurde.
Pixelabstand:
0,625mm/0,75mm/0,78mm/0,93mm/1,25mm/1,5mm/1,56mm/1,875mm/2,5mmHelligkeit:
1.000nitsGröße:
108"/ 130"/136"/ 163"/217"

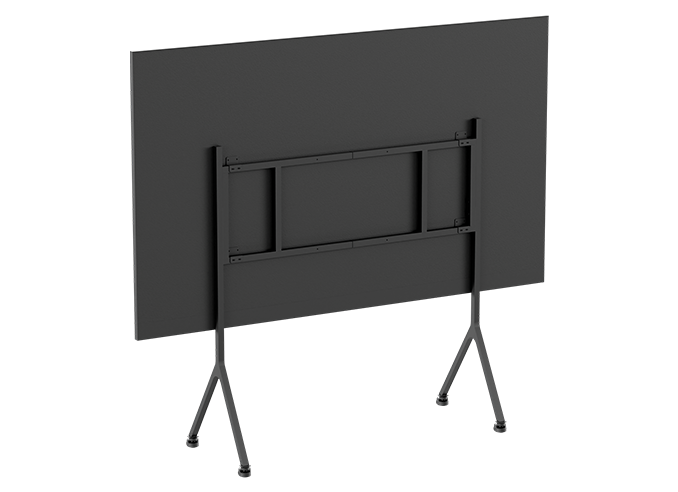

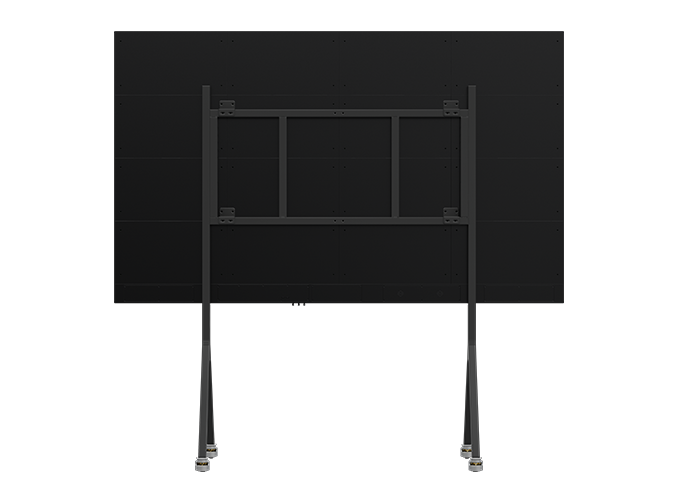

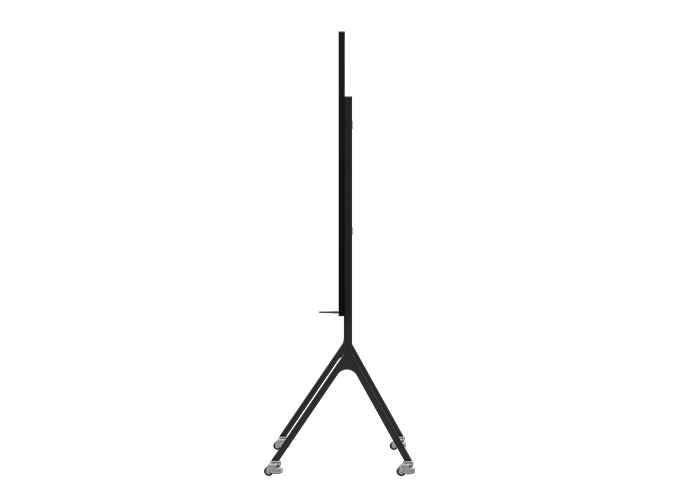

Das Produkt bietet verschiedene Installationsmöglichkeiten, entweder auf Rollen für die Bodenmontage oder fest an der Wand montierbar
Erweitert den Farbbereich, deckt einen größeren Farbraum ab und erzeugt ein realistischeres und lebendigeres Bild.
Optionen für interaktive Touch-Szenarien, mit 10-Punkt-Touch-Unterstützung.

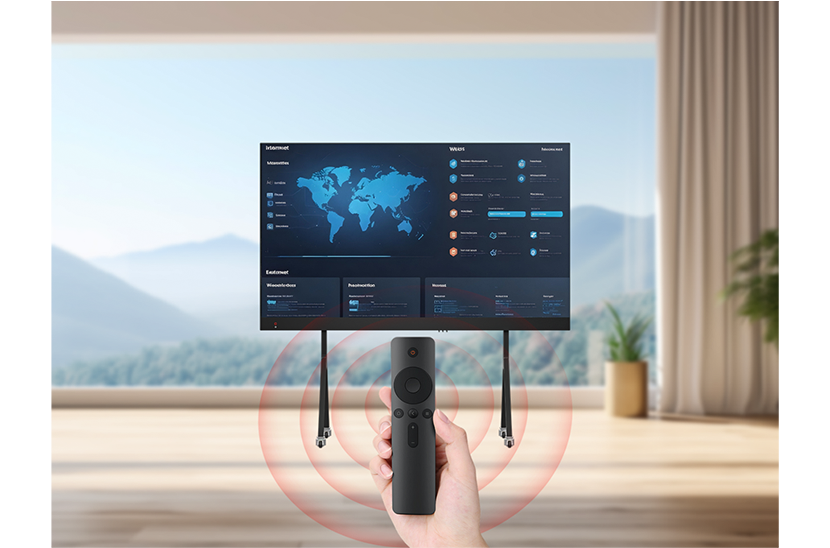

Mit der Fernbedienung lassen sich Lautstärke, Helligkeit einstellen und Dateien zum Abspielen öffnen.
Unterstützt Bildschirmspiegelung von PC, Smartphone und iPad. Ermöglicht das gleichzeitige Teilen von Bildschirmen von bis zu 9 Geräten.
| Model | 108-2K | 130-2K | 136-2K | 163-2K | 217-2K | 108-4K | 130-4K | 136-4K | 163-4K | 217-4K |
| Pixel Configuration | COB/SMD | COB | COB/SMD | SMD | SMD | COB | COB | COB | COB | COB |
| Pixel Pitch(mm) | 1.25 | 1.5 | 1.56 | 1.875 | 2.5 | 0.625 | 0.75 | 0.78 | 0.93 | 1.25 |
| Dispaly Size(mm)（WxH） | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 |
| Resolution（WxH） | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 |
| Overall Weight(kg) | 80 | 115 | 120 | 172 | 305 | 80 | 115 | 120 | 174 | 305 |
| Refresh Rate(Hz) | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Color Temp(K) | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Control Panel Type | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel |
| Interface | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 |
| WIFI Mode | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Model | 108-2K | 130-2K | 136-2K | 163-2K | 217-2K | 108-4K | 130-4K | 136-4K | 163-4K | 217-4K |
| Pixel Configuration | COB/SMD | COB | COB/SMD | SMD | SMD | COB | COB | COB | COB | COB |
| Pixel Pitch(mm) | 1.25 | 1.5 | 1.56 | 1.875 | 2.5 | 0.625 | 0.75 | 0.78 | 0.93 | 1.25 |
| Dispaly Size(mm)（WxH） | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 |
| Resolution（WxH） | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 |
| Overall Weight(kg) | 80 | 115 | 120 | 172 | 305 | 80 | 115 | 120 | 174 | 305 |
| Refresh Rate(Hz) | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Color Temp(K) | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Control Panel Type | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel |
| Interface | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 |
| WIFI Mode | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
